MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance
MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance
Контакт

MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance

Количество мин заказа : 10 Цена : 3.2
Сертификация: RoHS, CE, ISO9001 Документ: Брошюра продукта PDF

Подробная информация
Структура соединения: MPO-MPO Форма материала: Круглый проволока
Допустил прочность на растяжение: <100n Волоконно -режим: OM4 50/125μm
Дистанция Ethernet 40G: 150m на 850nm Расстояние 10G Ethernet: 400 м при 850 нм
Стеклянное волокно: Corning ClearCurve® Минимальный радиус изгиба: 3,0 мм
Длина волны: 850/1300nm Ослабление при 850 нм: ≤2,3 дБ/км
Затухание на длине волны 1300 нм: ≤ 0,6 дБ/км Нагрузка при испытании на разрыв установки: 66н
Предел прочности: 80/240Н Вносимая потеря: Типичный≤0,30 дБ, Макс≤0,75 дБ
Возвращаяся потеря: ≥50 дБ, ≥55 дБ (элитный)
Выделить:

0.35dB Max MTP Trunk Cable Assembly

,

12/24/48/72 Fibers MPO Trunk Patch Cord

,

40/100G Ethernet Distance MTP Male to MTP Male Cable

Характер продукции

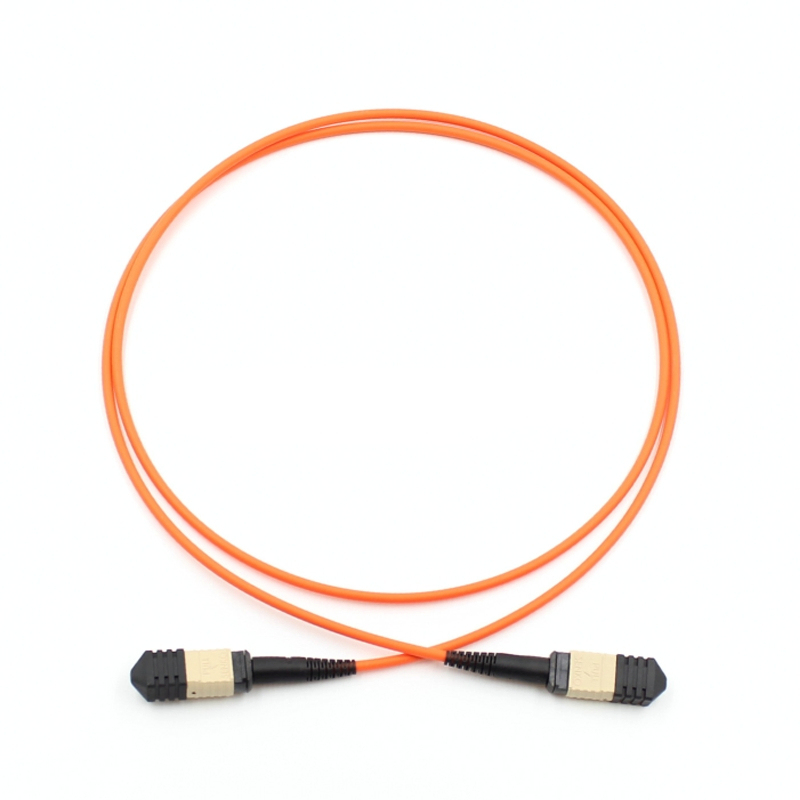

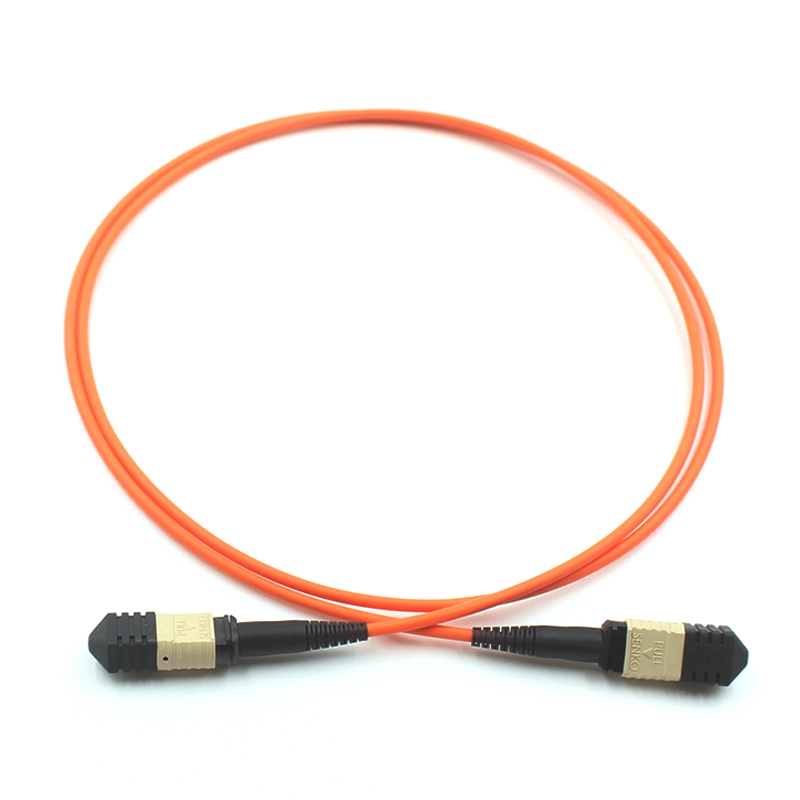

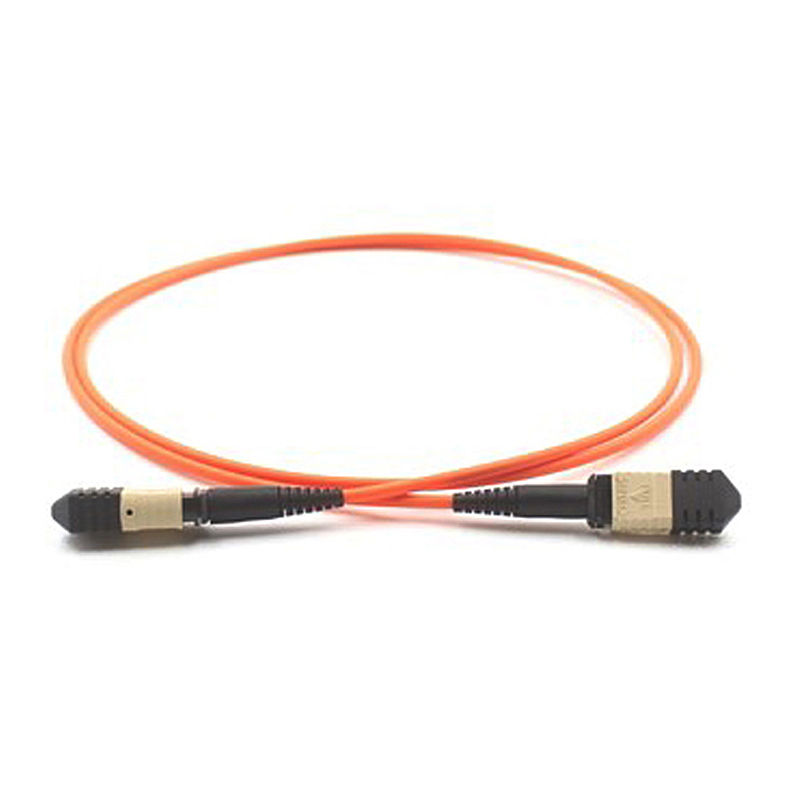

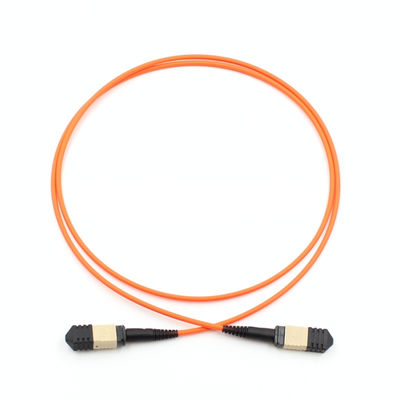

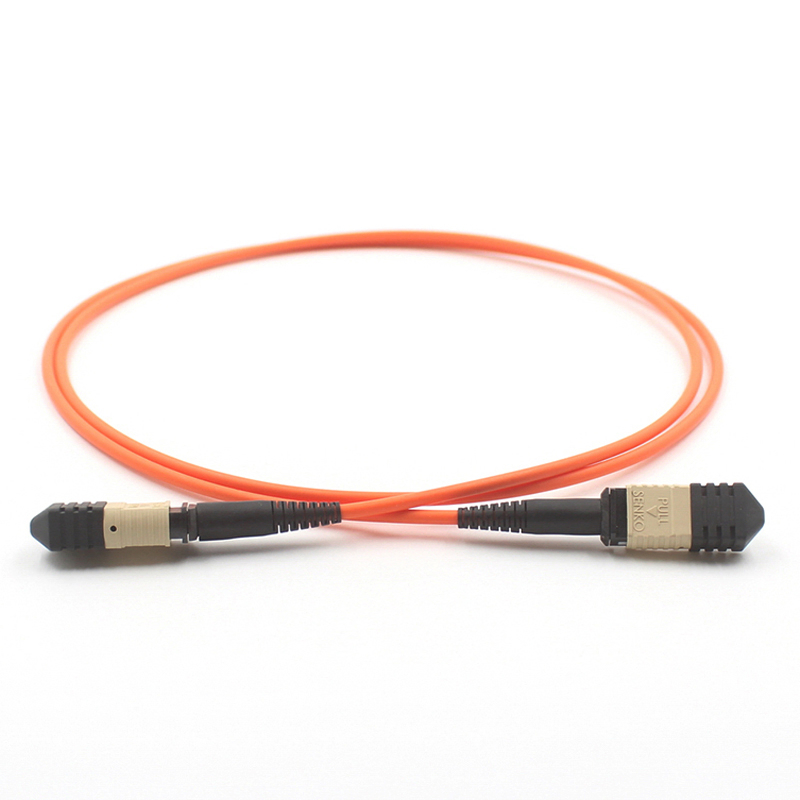

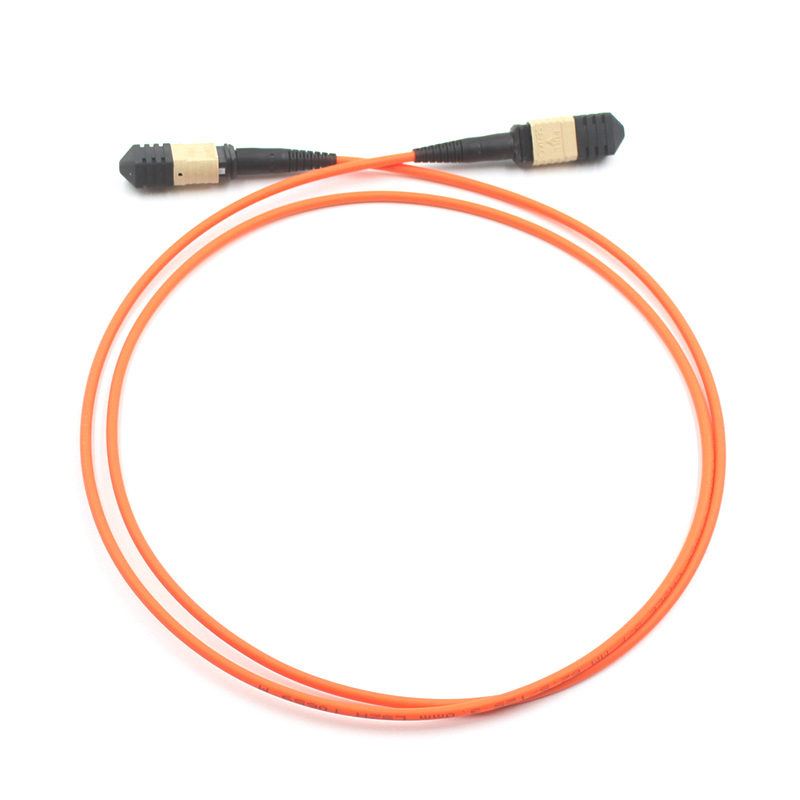

MTP Male to MTP Male Trunk Cable Assembly MM OM1 Plenum (OFNP), 0.35dB Max, Type B, Orange

FiberMania Cable supplies MTP® breakout cables in single-mode and multimode, employing 12, 24, 48, and 72 fibers. The MTP® fiber cable splits one 12 strand MTP® fiber optic cable into 12 individual SC cables. Fan-out style MTP® cable is available in both male and female styles, varying in length and by the diameter of the fan tube.

MTP/MPO Cable Assemblies, commonly recognized as MTP® Breakout Fiber as well, are primarily utilized for data distribution patch panels, including plenum applications.

MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance 0

MPO trunk patch cord can connect multi-core optical fibers and can be used with 12F/24F/48F/72F jumpers.

Key Features
  • High bandwidth and low loss: Using precision-polished fiber end faces, insertion loss ≤0.3dB, ensuring 40G/100G/400G high-speed transmission without delay.
  • Durability and stability: High-strength OM3/OM4 fiber + dust-proof buckle design, anti-bending, anti-interference, plug-in life>500 times.
  • Plug and play: Pre-terminated design, no need for on-site splicing, fast deployment saves 90% installation time.
  • Flexible configuration: Supports 12-core/24-core/48-core customization, optional length 0.5m~50m.
Specifications
Connector MPO/MTP(Male/Female)
Fiber Mode SM(OS2) | mm(OM1/OM2/OM3/OM4/OM5)
Polishing Type PC | APC | PC
Insertion Loss Typical≤0.30dB Max≤0.75dB
Typical≤0.15dB (Elite) Max≤0.35dB (Elite)
Return Loss ≥50dB ≥55dB(Elite) | ≥60dB ≥65dB(Elite) | ≥35dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Fiber Count 8/12/24/48/72/96/144 Fibers
Cable Jacket PVC/OFNR/OFNP/LSZH
RoHS Compliancy Status Compliant
Applications
  • Data Distribution Patch Panels
  • High-Density Networking Environments
  • Plenum Spaces
  • Used with MPO/MTP adapter panel
  • Active optical network transceiver control
  • Optical fiber distribution system
Our Advantages
  • Versatile Fiber Options: Available in single-mode and multimode configurations.
  • Multiple Fiber Counts: Choose from 12, 24, 48, or 72 fibers.
  • Breakout Design: Splits one 12-strand MTP® cable into 12 individual SC cables.
  • Fan-Out Styles: Available in both male and female configurations.
  • Customizable Lengths: Various lengths and tube diameters available.
Quality Testing Program
MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance 1
  • IL and RL Testing: Conduct testing on insertion loss and return loss to verify reach and ensure stable signal transmission.
  • 3D Interferometer Testing: Evaluate connectors to verify apex offset, radius of curvature, and fiber height.
MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance 2 MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance 3
  • End-Face Inspection: Examine connector end face for scratches or contamination to ensure clean tips and network reliability.
Production Equipment
MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance 4
Certifications
MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance 5
Packaging & Shipping
MTP Trunk Cable Assembly MPO Trunk Patch Cord with 0.35dB Max Loss 12/24/48/72 Fibers for 40/100G Ethernet Distance 6
Frequently Asked Questions
Q1: What is the warranty of FiberMania's fiber patch cord?

A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

Q2: Is it possible to customize our brand information on your fiber cable?

A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

Q3: Can you do 3D interferometer test?

A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

Q4: What is your MOQ of your products?

A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable.

Q5: Are free samples available from you?

A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under 50 US dollars.
